★主要技术参数（Technical parameters）：
1、砂轮主轴径向跳动:0.008mm，传动罗拉径向跳动:0.008mm
Vertical vibration of stone or driving roller main axle: 0.008 mm
2、磨砺后胶辊的径向跳动:0.015mm(排除胶辊本身间隙条件下)
Vertical vibration of rubber roller after processing:0.015mm
(excluding clearance of rubber roller itself)
3、磨砺后胶辊的两端直径差:0.015mm(排除胶辊本身间隙条件下)
Diameter difference between of two ends of rubber roller after
processing:0.015 mm(excluding clearance of rubber roller itself)
4、磨砺后胶辊的表面粗糙度:Ra0.2～0.8mm(精磨)
Surface roughness of rubber roller after processing: Ra 0.2~0.8um
5、磨砺速度(Output): 800～1000只/班×2（pcs/8h）
6、外形尺寸(package)：长(L)×宽(W)×高(H)=（145×100×160）cm3
7、机器毛净重(G/N weight)：750/680kg
★性能特征（Characteristics）：
1、双工位精度磨砺，效率翻倍。
The double location accuracy efforts, double the efficiency.
2、磨砺精度高、磨砺性能稳定。
High precision hone honed stable performance
3、适应对粗纱、细纱胶辊进行快速磨砺。
To adapt to the roving yarn spinning roller mill fast
4、双无中心夹具：确保罗拉轴承与胶辊的同心度。
Double no center fixture: make sure the roller bearing and roller concentricity.

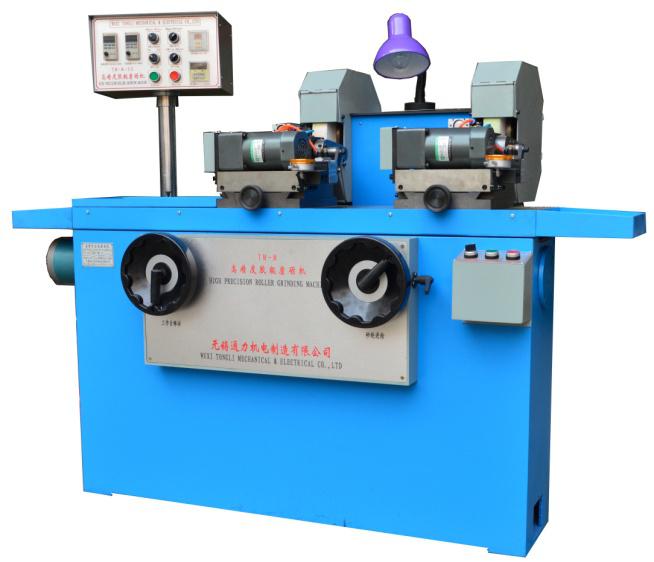

双夹具与双砂轮
选配检测表座
