★主要技术参数（Technical parameters）：
1、车头主轴径向跳动:0.01mm
Vertical vibration of machine head main axle: 0.01 mm
2、砂轮主轴径向跳动:0.008mm
Vertical vibration of grinding wheel main axle: 0.008 mm
3、加工后胶辊的径向跳动:0.015mm(排除胶辊本身间隙条件下)
Vertical vibration of rubber roller after processing:0.015mm
(excluding clearance of rubber roller itself)
4、加工后胶辊的两端直径差:0.015mm(排除胶辊本身间隙条件下)
Diameter difference between of two ends of rubber roller after
processing:0.015 mm(excluding clearance of rubber roller itself)
5、加工后胶辊的表面粗糙度:Ra0.2～0.8mm(精磨)
Surface roughness of rubber roller after processing: Ra 0.2~0.8um ( fine grinding )
6、产量(Output):800～1000只/班(pcs/shift)
7、电源及功率(power supply & motor power)：380V 50Hz 4.21KW
8、外形尺寸(package)：长(L)×宽(W)×高(H)=（175×104×160）cm3
9、机器毛/净重(G/N weight)：900/1000kg（含集尘箱）
★性能特征（Characteristics）：
1、触摸屏操作控制系统，设置多种不同磨削工艺，操作更加方便
Operation by touch screen,it can be set various grinding crafts,
so the operation is easier than ever.
2、“V”型交叉导轨：确保拖板往复直线度。
“V” type cross liners are adopted for insuring the board moving in straight.
3、永磁电机：扭矩大，确保运转平稳。
Magnetic motor is adopted for insuring stabilization in running.
4、无中心夹具：确保罗拉轴承与胶辊的同心度。
Clamp without center is adopted for insuring concentricity between bearing and rubber.
5、断电保护：瞬间断电保证工件的夹持力，确保人身安全。
Electrical protection system is adopted for insuring operator in safety.

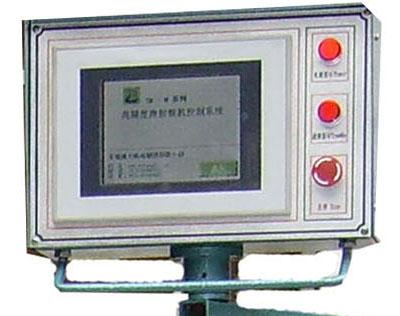

触屏程序控制
磨头、台面
车头变频调速
粗细纱胶辊夹具
